Driver Seat Warmer Module Connector End View (S08)

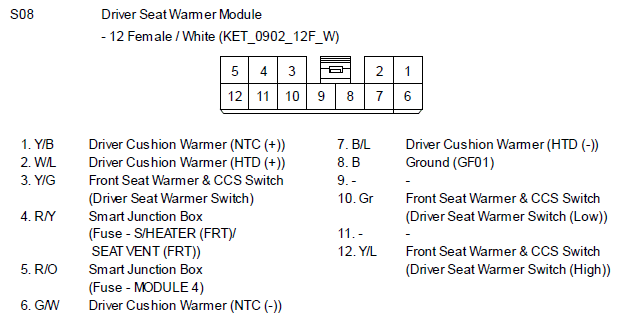

Fig 1: Driver Seat Warmer Module Connector End View (S08)

G10800088

Courtesy of KIA MOTORS AMERICA, INC.
