Driver IMS Module Connector End View (S03-D)

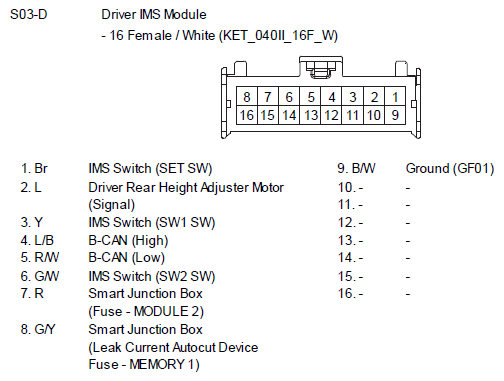

Fig 1: Driver IMS Module Connector End View (S03-D)

G10800083

Courtesy of KIA MOTORS AMERICA, INC.
