SRS Control Module Connector End View (F15)

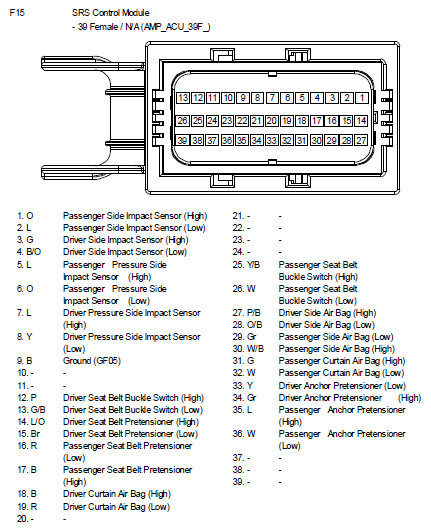

Fig 1: SRS Control Module Connector End View (F15)

G10800321

Courtesy of KIA MOTORS AMERICA, INC.
