Electric Parking Brake Module Connector End View (F67)

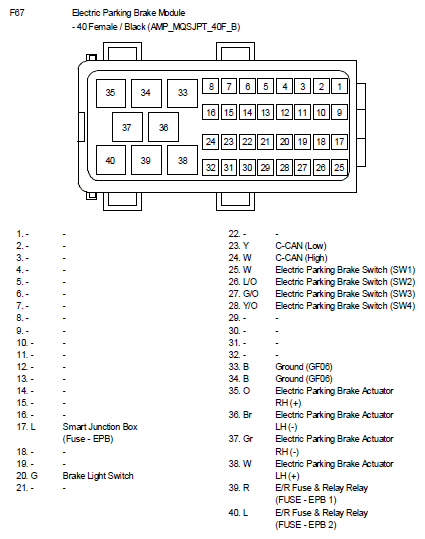

Fig 1: Electric Parking Brake Module Connector End View (F67)

G10800355

Courtesy of KIA MOTORS AMERICA, INC.
