Audio (W/O UVO) Connector End View (M09-B)

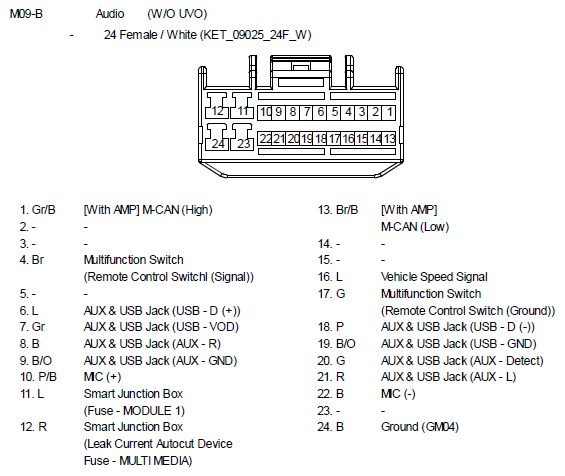

Fig 1: Audio (W/O UVO) Connector End View (M09-B)

G10799807

Courtesy of KIA MOTORS AMERICA, INC.
