A/C Control Module (Auto) Connector End View (M21-B)

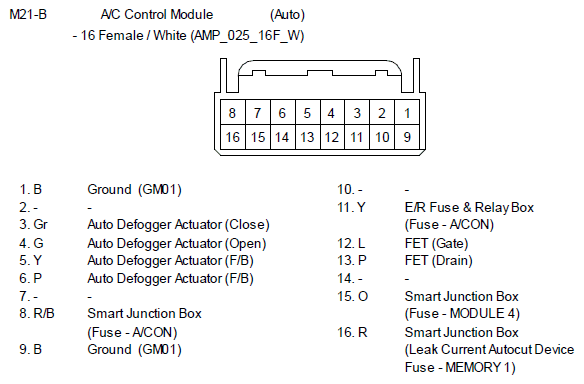

Fig 1: A/C Control Module (Auto) Connector End View (M21-B)

G10800157

Courtesy of KIA MOTORS AMERICA, INC.
