Joint Connector End View (JM01)

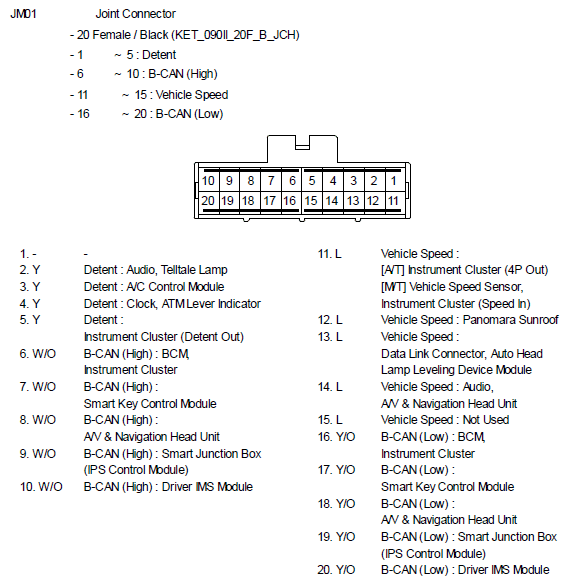

Fig 1: Joint Connector End View (JM01)

G10800123

Courtesy of KIA MOTORS AMERICA, INC.
