Head Lamp RH (With HID) (Extension Harness) Connector End View (E06)

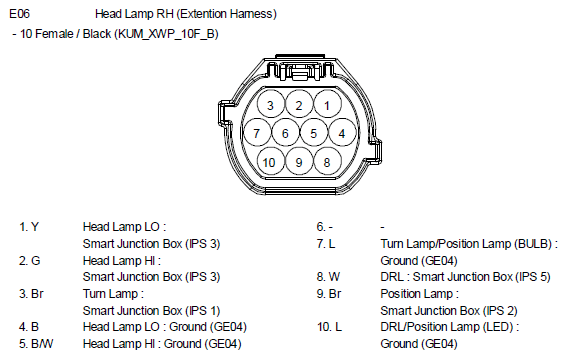

Fig 1: Head Lamp RH (With HID) (Extension Harness) Connector End View (E06)

G10799885

Courtesy of KIA MOTORS AMERICA, INC.
