Rear Power Window Switch LH (With Seat Warmer) Connector End View (D48)

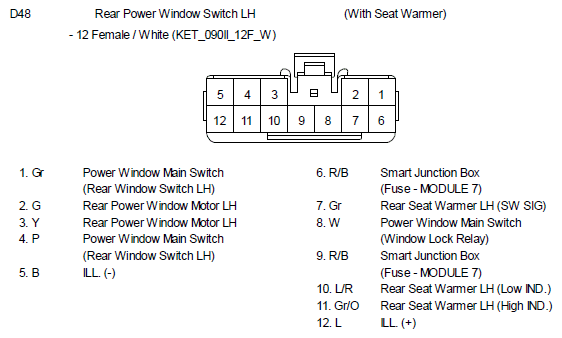

Fig 1: Rear Power Window Switch LH (With Seat Warmer) Connector End View (D48)

G10800052

Courtesy of KIA MOTORS AMERICA, INC.
