Passenger Power Outside Mirror Connector End View (D30)

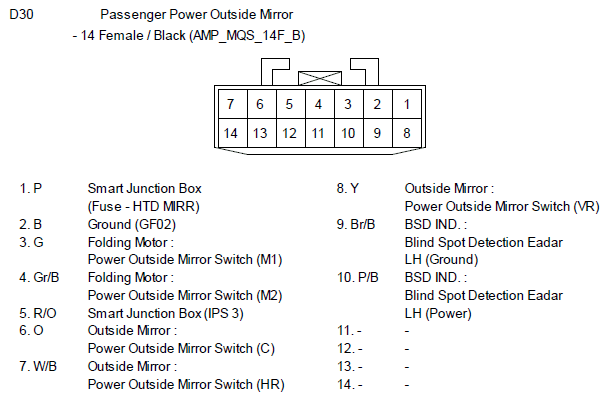

Fig 1: Passenger Power Outside Mirror Connector End View (D30)

G10800708

Courtesy of KIA MOTORS AMERICA, INC.
