Driver Power Outside Mirror Connector End View (D10)

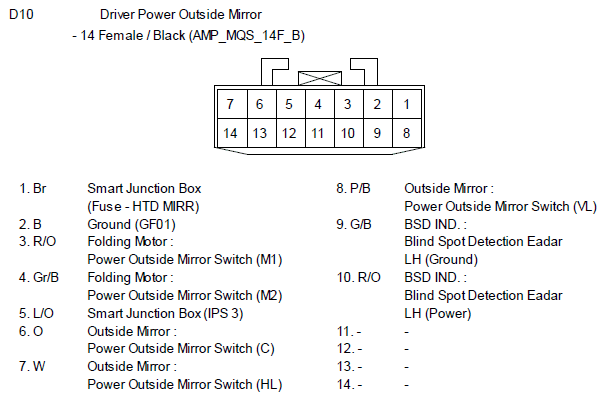

Fig 1: Driver Power Outside Mirror Connector End View (D10)

G10800696

Courtesy of KIA MOTORS AMERICA, INC.
