Driver IMS Module Connector End View (S03-C)

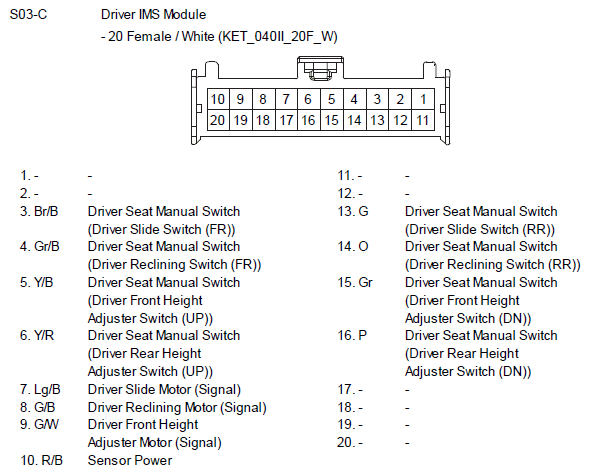

Fig 1: Driver IMS Module Connector End View (S03-C)

G10800747

Courtesy of KIA MOTORS AMERICA, INC.
