Circuit Diagram

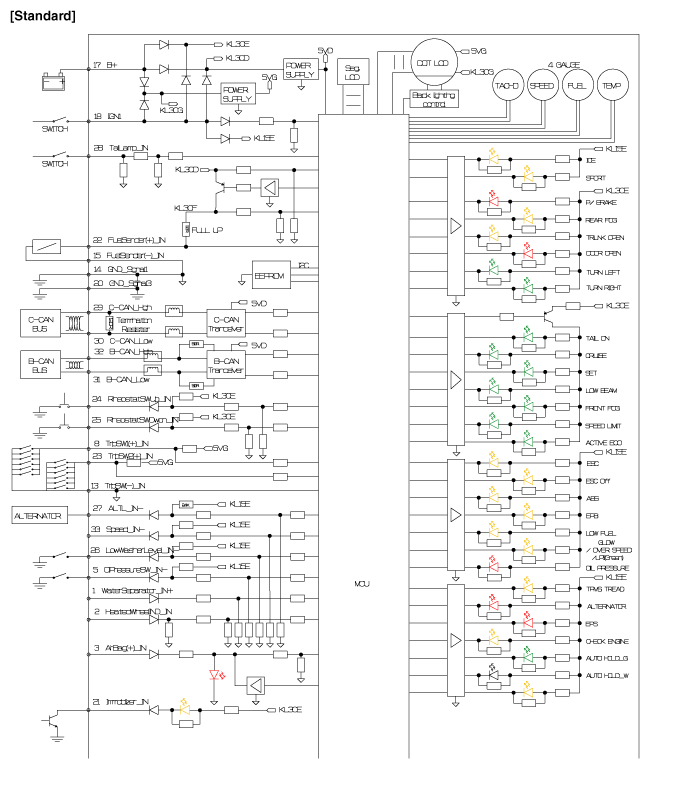

Fig 1: Instrument Cluster Circuit Diagram - Standard (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

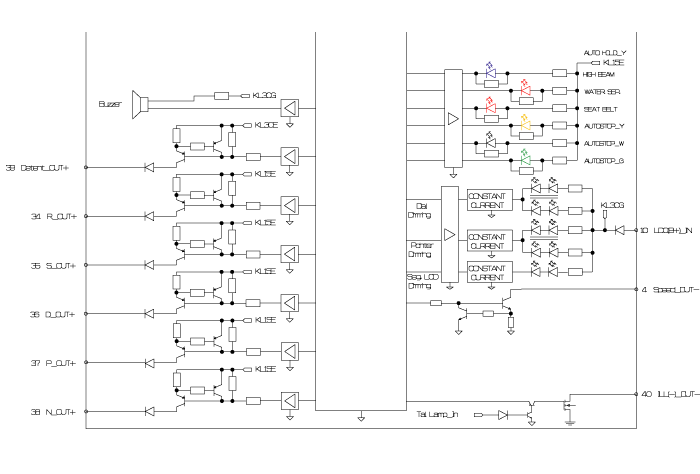

Fig 2: Instrument Cluster Circuit Diagram - Standard (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

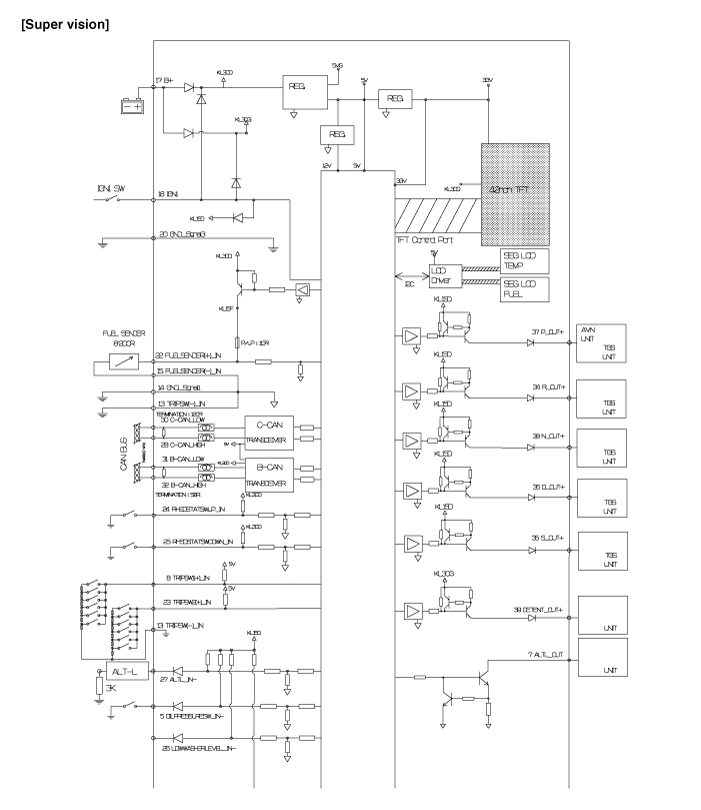

Fig 3: Instrument Cluster Circuit Diagram - Super Vision (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

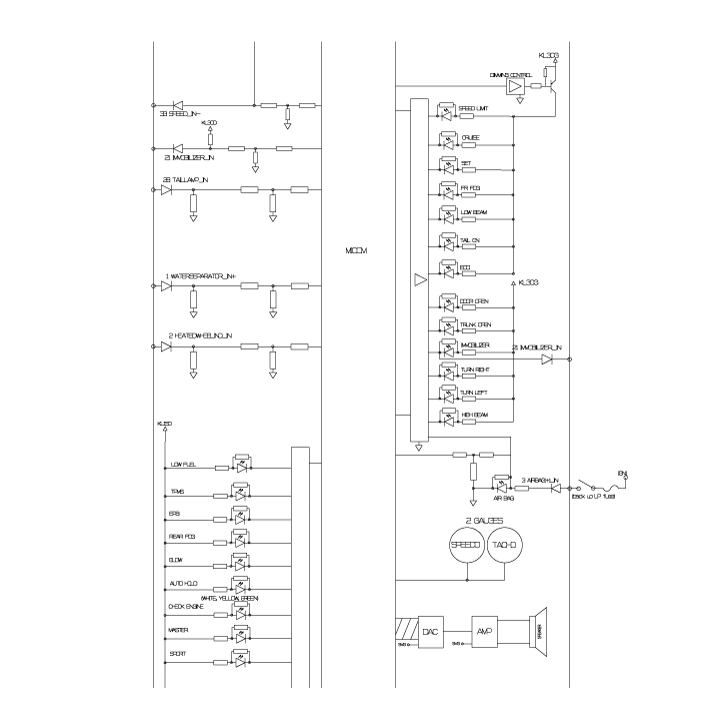

Fig 4: Instrument Cluster Circuit Diagram - Super Vision (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

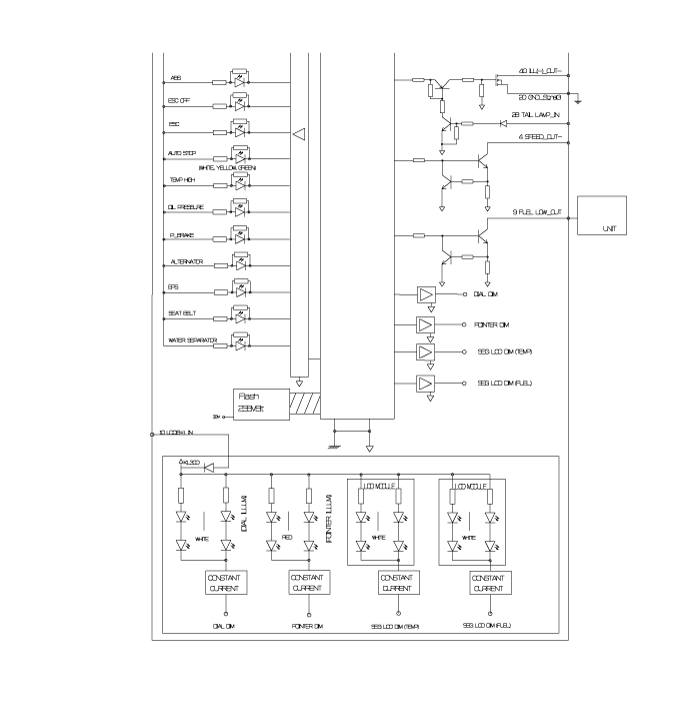

Fig 5: Instrument Cluster Circuit Diagram - Super Vision (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
