Component And Components Location: Components

Fig 1: Instrument Cluster (Standard)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Instrument Cluster (Super Vision)

Courtesy of KIA MOTORS AMERICA, INC.

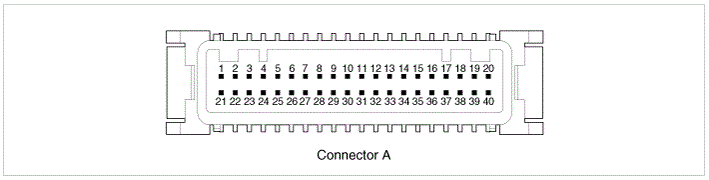

Fig 3: Instrument Cluster Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

CLUSTER CONNECTOR TERMINAL IDENTIFICATION

No.	Description	No.	Description
1	Water separator input (+)	21	Immobilizer input
2	Heated wheel indicator input	22	Fuel sender (+) input
3	Air bag (+) input	23	Trip switch 2 (+) input (Trip button)
4	Speed output (AT only)	24	Rheostat switch up input
5	Oil pressure switch input (-)	25	Rheostat switch down input
6	-	26	Low washer level input (-)
7	-	27	ALT L input (-)
8	Trip switch 1 (+) input (Cruise button)	28	Tail lamp input (Illumination (+))
9	-	29	C CAN High
10	LDC (B+) input	30	C CAN Low
11	-	31	B CAN Low
12	-	32	B CAN High
13	Trip switch (-) input	33	Speed input (-)
14	Signal 1 ground	34	AT R position output (+)
15	Fuel sender (-) input	35	AT S position output (+)
16	-	36	AT D position output (+)
17	Battery (+)	37	AT P position output (+)
18	IGN1	38	AT N position output (+)
19	-	39	Detent output (+)
20	Signal 3 ground	40	Illumination (-) output
