Circuit Diagram

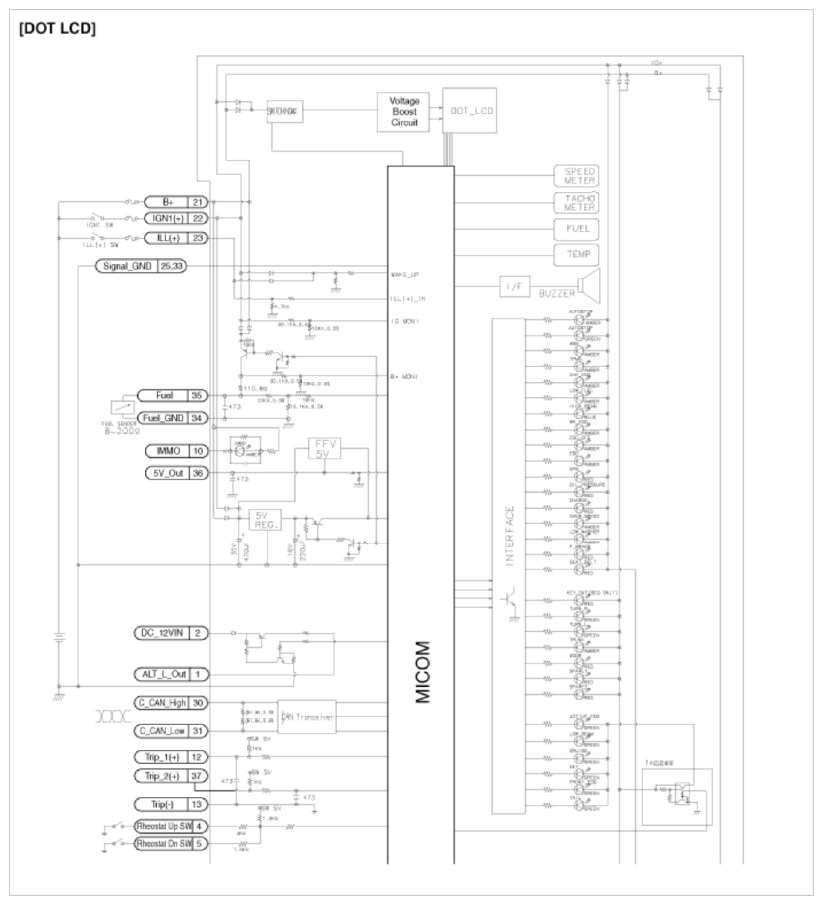

Fig 1: MICOM - Circuit Diagram - DOT LCD (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

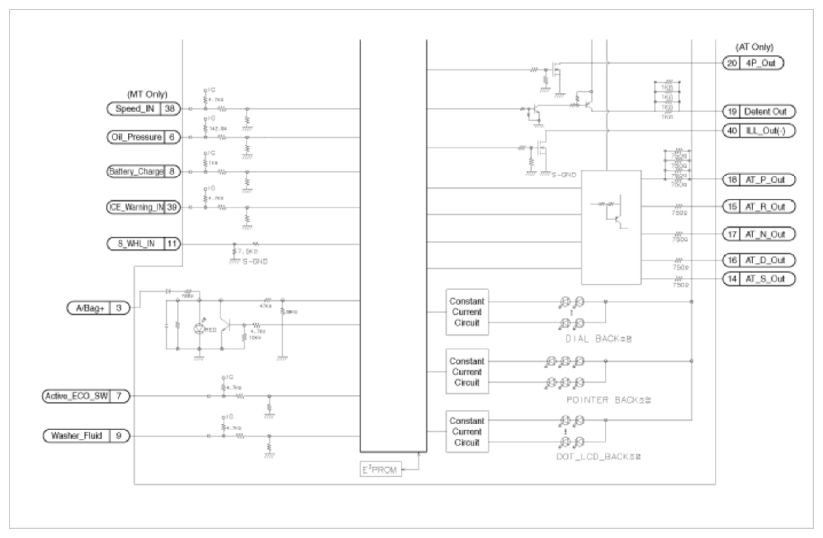

Fig 2: MICOM - Circuit Diagram - DOT LCD (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

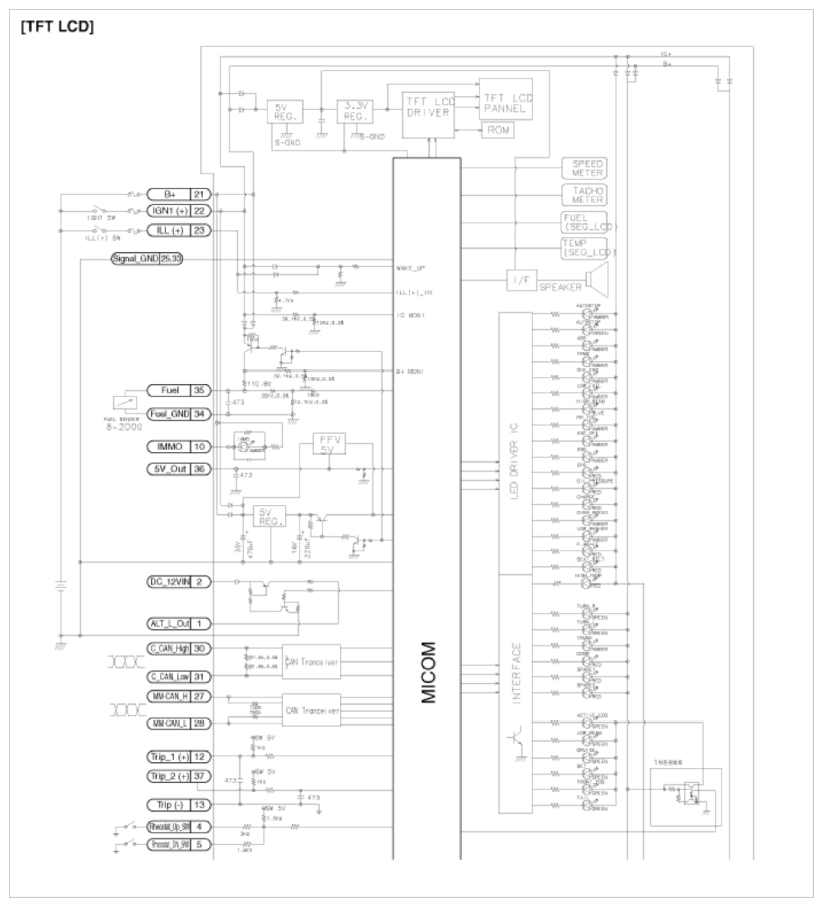

Fig 3: MICOM - Circuit Diagram - TFT LCD (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

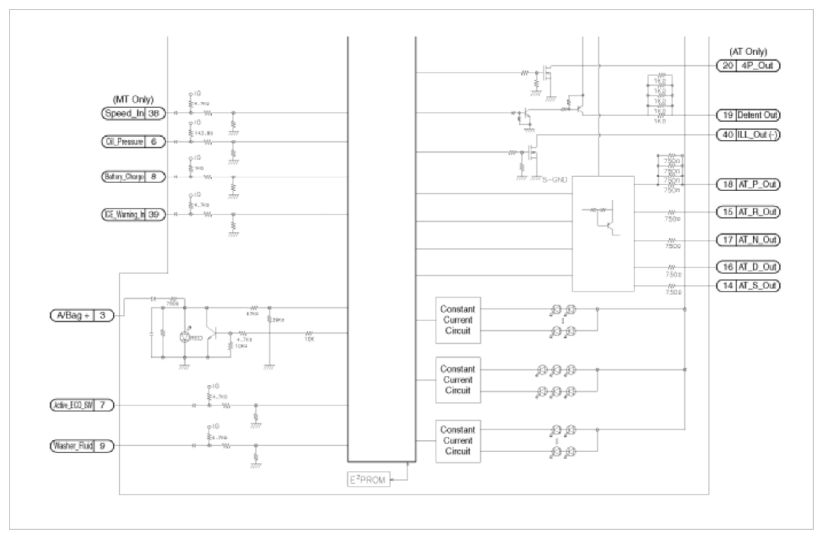

Fig 4: MICOM - Circuit Diagram - TFT LCD (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

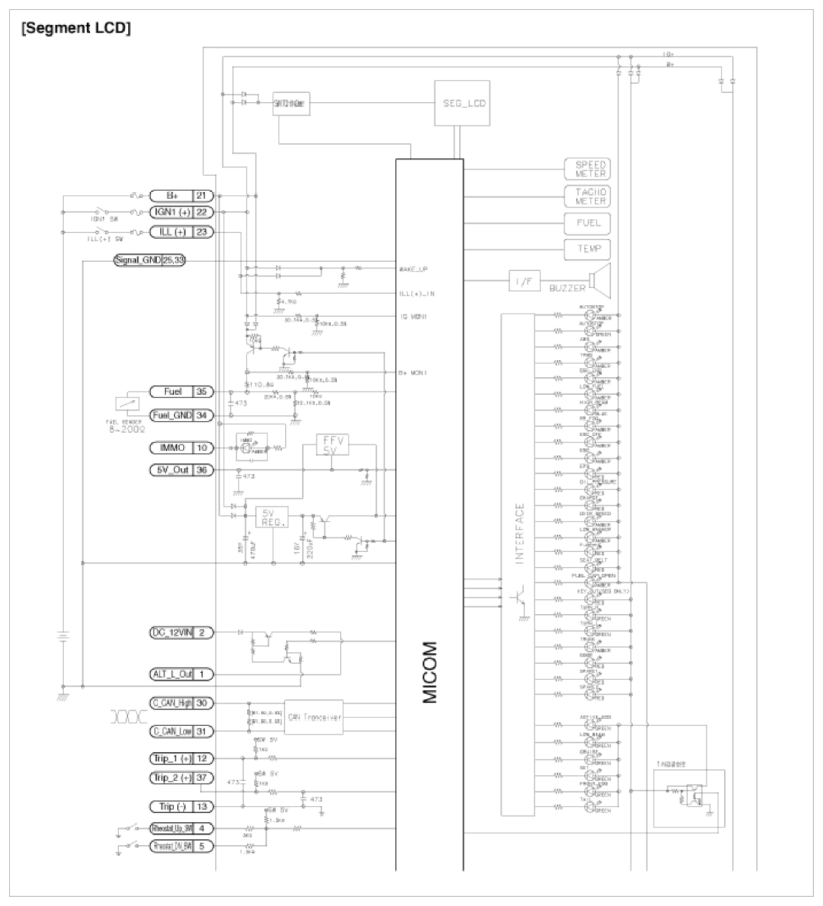

Fig 5: MICOM - Circuit Diagram - Segment LCD (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

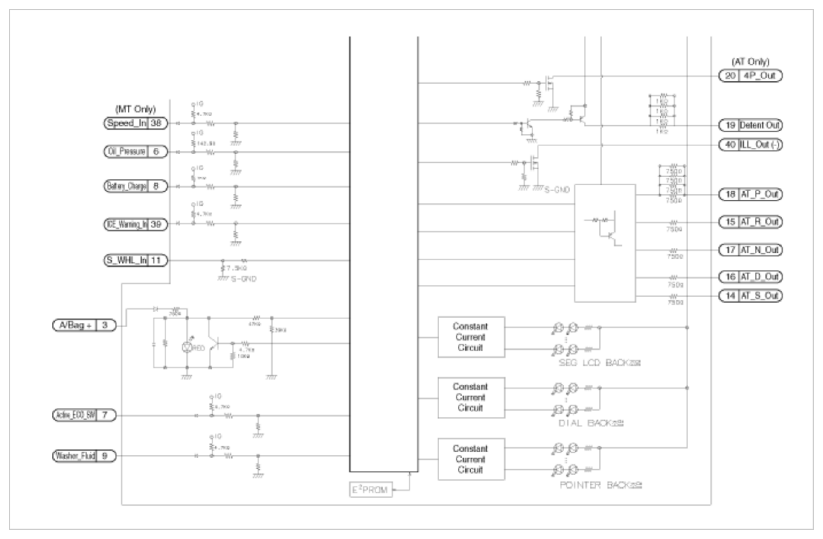

Fig 6: MICOM - Circuit Diagram - Segment LCD (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
