Components and Components Location: Components

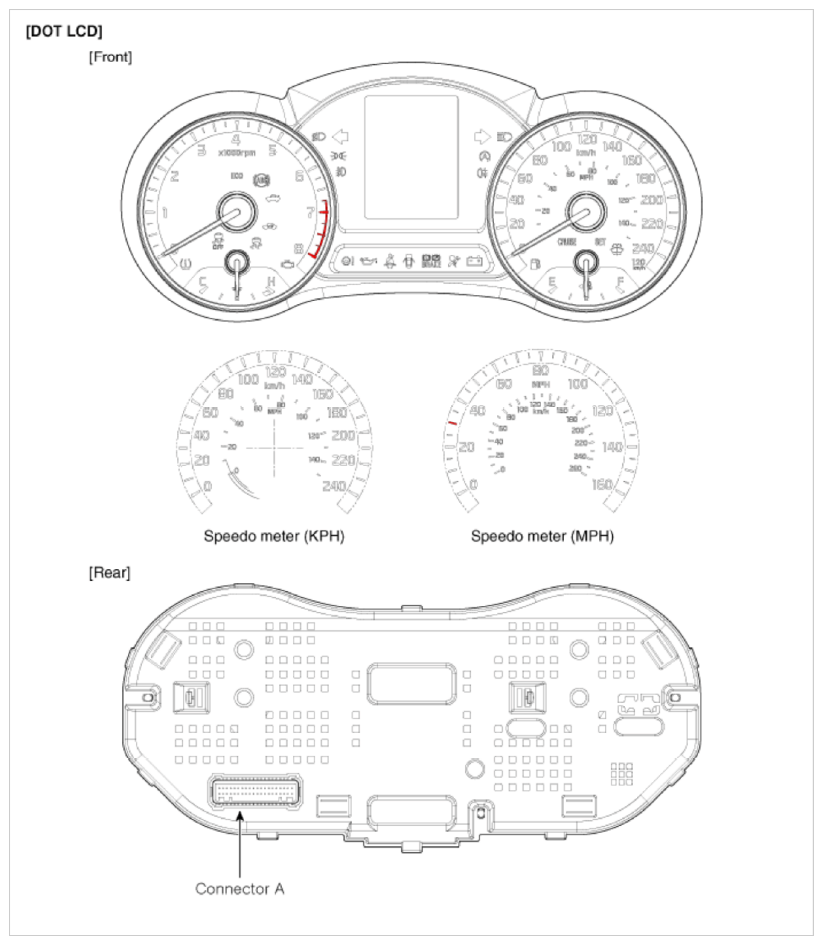

Fig 1: Instrument Cluster (DOT LCD)

Courtesy of KIA MOTORS AMERICA, INC.

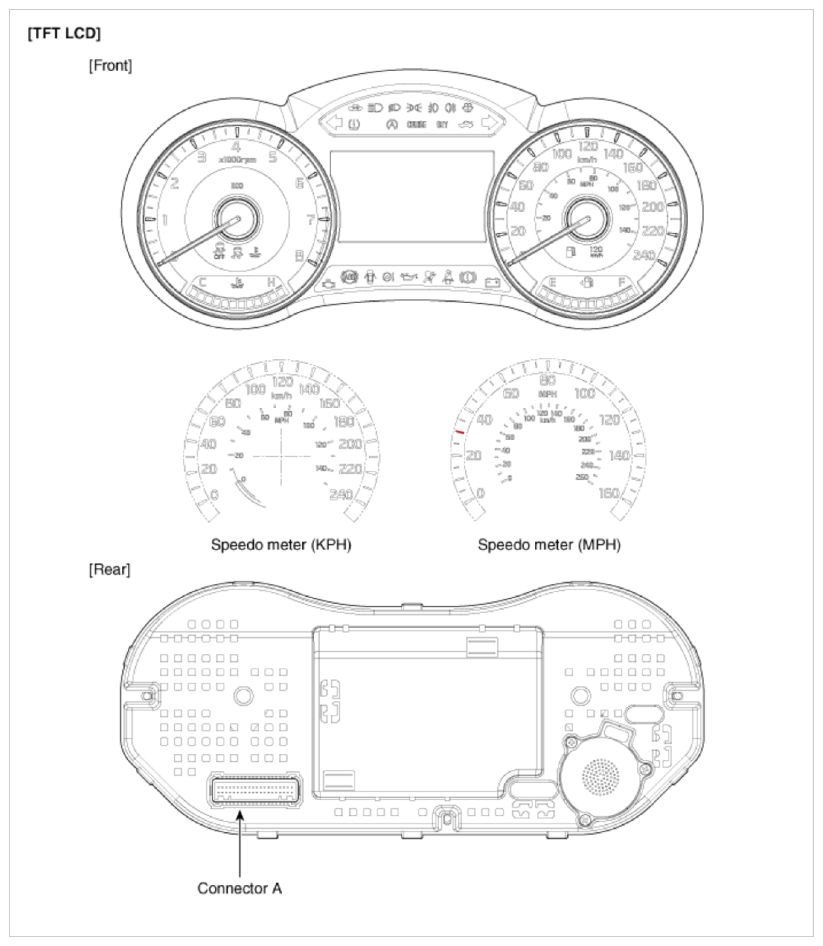

Fig 2: Instrument Cluster (TFT LCD)

Courtesy of KIA MOTORS AMERICA, INC.

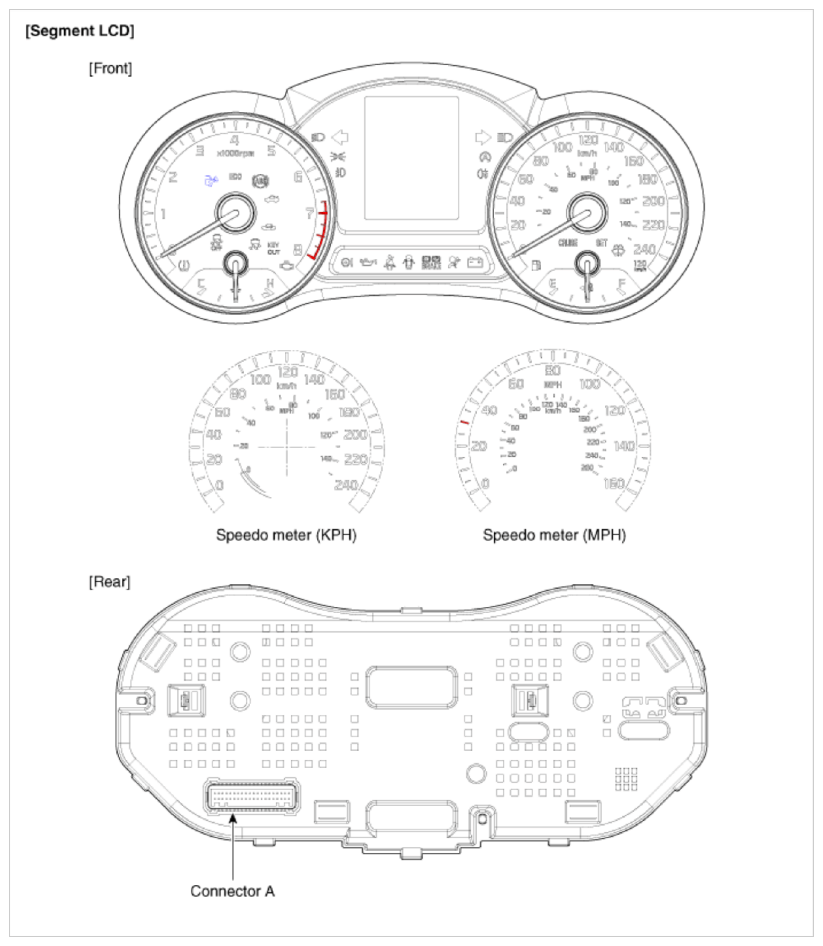

Fig 3: Instrument Cluster (Segment LCD)

Courtesy of KIA MOTORS AMERICA, INC.

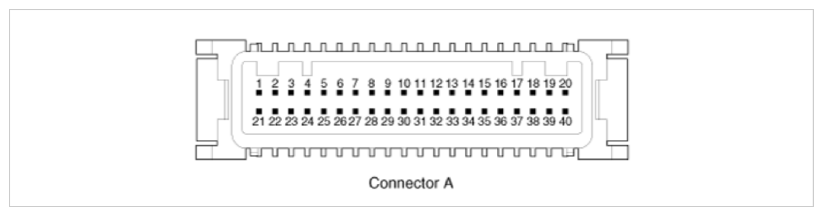

Fig 4: Instrument Cluster Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

CONNECTOR PIN INFORMATION

No.	Description
1	Alternator L output
2	ISG type: LDC unit General type: Battery(+)
3	Air bag (+)
4	Rheostat up switch
5	Rheostat down switch
6	Oil pressure
7	Active ECO
8	Battery charge
9	Low washer
10	Immobilizer
11	Steering wheel input (DOT/TFT only)
12	Trip switch 1 (+)
13	Trip (-)
14	AT S output
15	AT R output
16	AT D output
17	AT N output
18	AT P output
19	Detent output
20	4P output
21	Battery (+)
22	Ignition (+)
23	Illumination (+)
24	-
25	Signal ground 1
26	-
27	MM CAN High (TFT only)
28	MM CAN Low (TFT only)
29	-
30	C CAN High
31	C CAN Low
32	-
33	Signal ground 2
34	Fuel (-)
35	Fuel (+)
36	5V output (FFV sender)
37	Trip switch 2 (+)
38	Speed input (M/T)
39	Ice warning input
40	Illumination (-) output
