Smart Key Bumper Antenna Connector End View (R23)

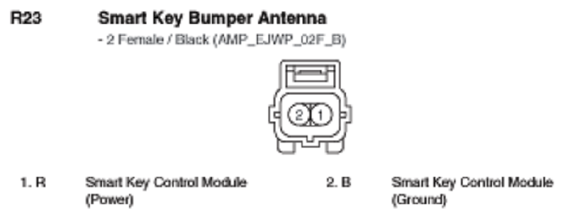

Fig 1: Smart Key Bumper Antenna Connector End View (R23)

G10798466

Courtesy of KIA MOTORS AMERICA, INC.
