Passenger Reclining Motor Connector End View (S33)

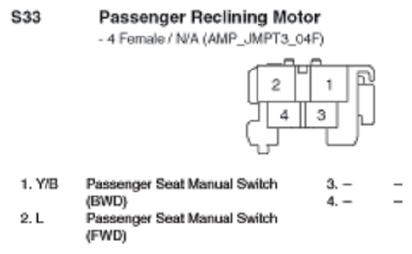

Fig 1: Passenger Reclining Motor Connector End View (S33)

G10798495

Courtesy of KIA MOTORS AMERICA, INC.
