Overhead Console Lamp Connector End View (R01)

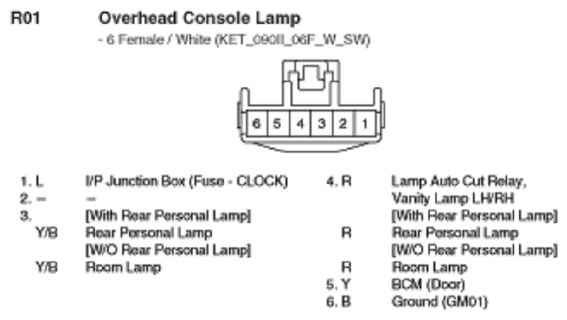

Fig 1: Overhead Console Lamp Connector End View (R01)

G10798455

Courtesy of KIA MOTORS AMERICA, INC.
