Passenger Front Impact Sensor Connector End View (E51)

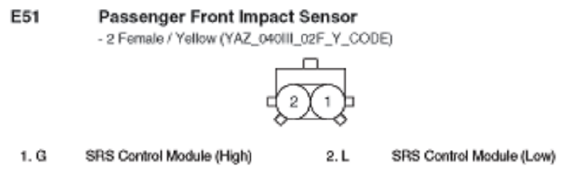

Fig 1: Passenger Front Impact Sensor Connector End View (E51)

G10798326

Courtesy of KIA MOTORS AMERICA, INC.
