Rain Sensor Connector End View (R03)

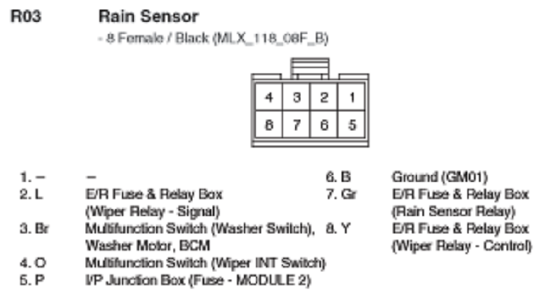

Fig 1: Rain Sensor Connector End View (R03)

G10798457

Courtesy of KIA MOTORS AMERICA, INC.
