Electro Chromic Mirror Connector End View (R02)

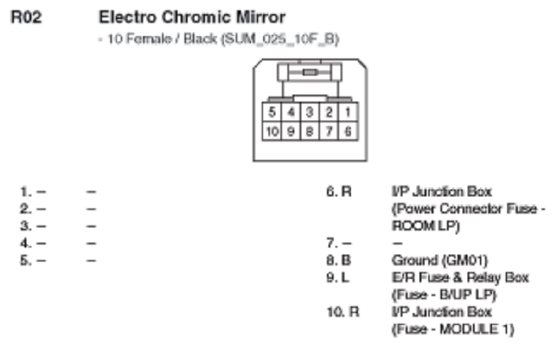

Fig 1: Electro Chromic Mirror Connector End View (R02)

G10798456

Courtesy of KIA MOTORS AMERICA, INC.
