Tire Pressure Monitoring Module Connector End View (M41)

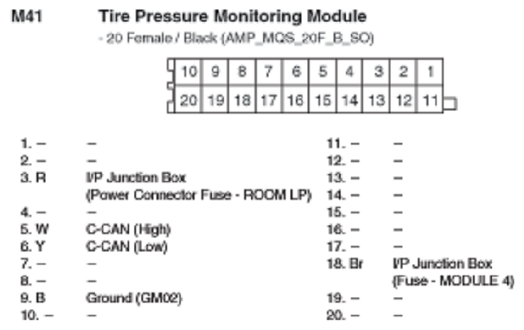

Fig 1: Tire Pressure Monitoring Module Connector End View (M41)

G10798242

Courtesy of KIA MOTORS AMERICA, INC.
