Start Stop Button Switch Connector End View (M04)

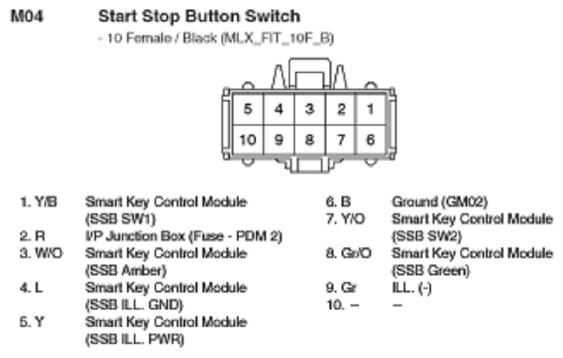

Fig 1: Start Stop Button Switch Connector End View (M04)

G10798206

Courtesy of KIA MOTORS AMERICA, INC.
