Passenger Air Bag Connector End View (M46)

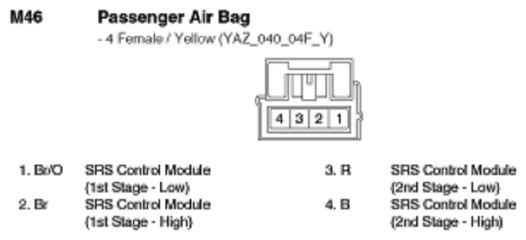

Fig 1: Passenger Air Bag Connector End View (M46)

G10798245

Courtesy of KIA MOTORS AMERICA, INC.
