Mode Actuator Connector End View (M29)

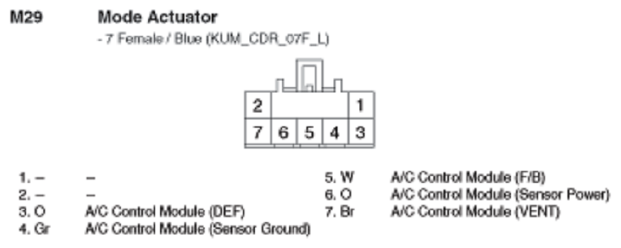

Fig 1: Mode Actuator Connector End View (M29)

G10798234

Courtesy of KIA MOTORS AMERICA, INC.
