Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Connector End Views (Main Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Midrange Twitter Speaker RH Connector End View (M53)

Midrange Twitter Speaker RH Connector End View (M53)

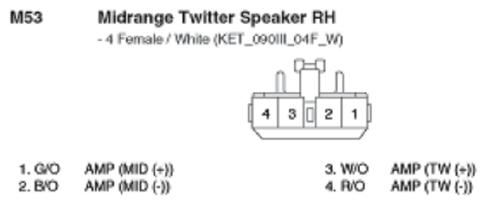

Fig 1: Midrange Twitter Speaker RH Connector End View (M53)

G10798251

Courtesy of KIA MOTORS AMERICA, INC.
