Key Solenoid Connector End View (M39)

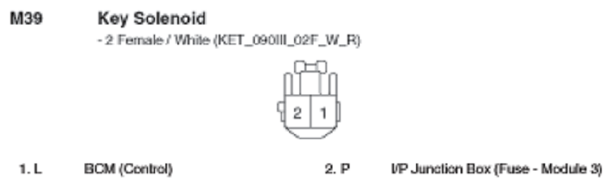

Fig 1: Key Solenoid Connector End View (M39)

G10798241

Courtesy of KIA MOTORS AMERICA, INC.
