Intake Actuator Connector End View (M37)

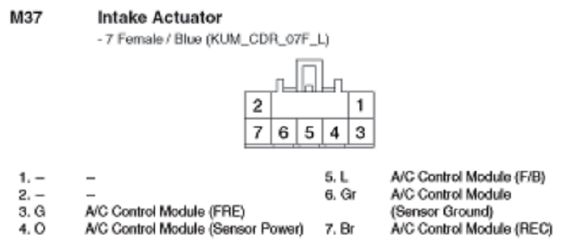

Fig 1: Intake Actuator Connector End View (M37)

G10798239

Courtesy of KIA MOTORS AMERICA, INC.
