OEM Connector End Views (Main Harness) - 2.0L - Except HEV (USA)
>>
Connector End Views
>>
Ignition Key III. & Door Warning Switch Connector End View (M45)
Ignition Key III. & Door Warning Switch Connector End View (M45)

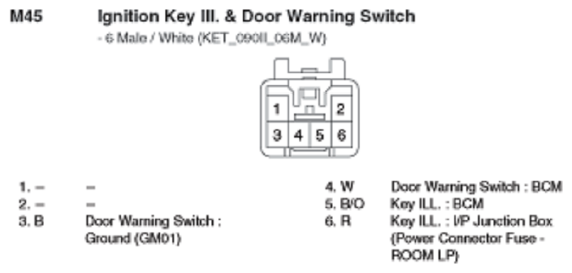

Fig 1: Ignition Key III. & Door Warning Switch Connector End View (M45)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
