Blower Motor Connector End View (M27)

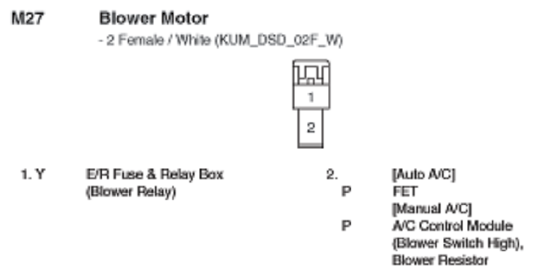

Fig 1: Blower Motor Connector End View (M27)

G10798233

Courtesy of KIA MOTORS AMERICA, INC.
