AUX & USB Jack (W/O Navigation) Connector End View (M11)

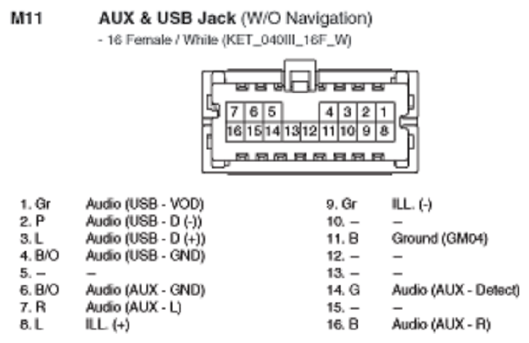

Fig 1: AUX & USB Jack (W/O Navigation) Connector End View (M11)

G10798214

Courtesy of KIA MOTORS AMERICA, INC.
