A/V & Navigation Head Unit Connector End View (M15-A)

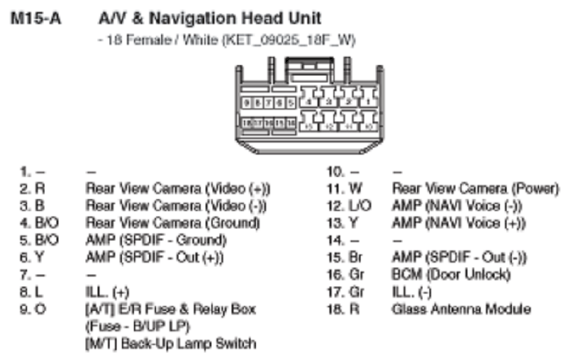

Fig 1: A/V & Navigation Head Unit Connector End View (M15-A)

G10798220

Courtesy of KIA MOTORS AMERICA, INC.
