A/V & Navigation Head Unit (Ground) Connector End View (M15-G)

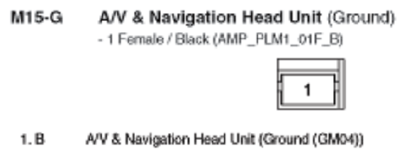

Fig 1: A/V & Navigation Head Unit (Ground) Connector End View (M15-G)

G10798222

Courtesy of KIA MOTORS AMERICA, INC.
