Rain Sensor Relay Connector End View (E72)

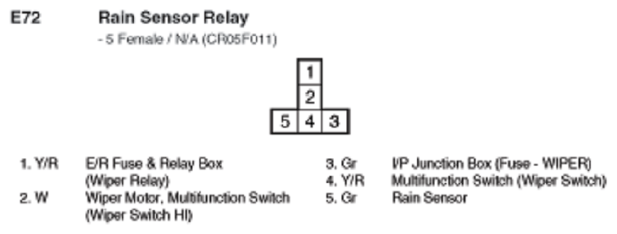

Fig 1: Rain Sensor Relay Connector End View (E72)

G10798311

Courtesy of KIA MOTORS AMERICA, INC.
