RR HTD Relay Connector End View (E61)

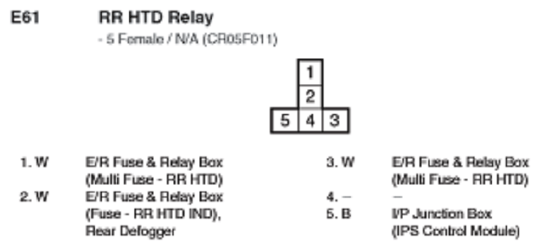

Fig 1: RR HTD Relay Connector End View (E61)

G10798304

Courtesy of KIA MOTORS AMERICA, INC.
