Ignition Lock Switch Connector End View (E24)

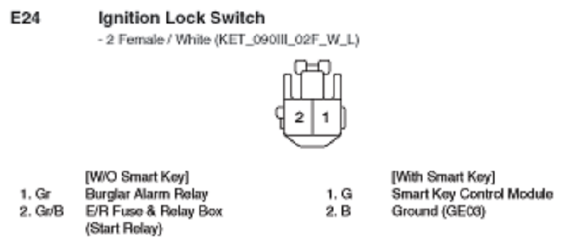

Fig 1: Ignition Lock Switch Connector End View (E24)

G10798293

Courtesy of KIA MOTORS AMERICA, INC.
