Front Wheel Sensor LH Connector End View (E13)

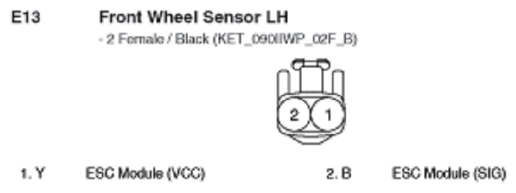

Fig 1: Front Wheel Sensor LH Connector End View (E13)

G10798284

Courtesy of KIA MOTORS AMERICA, INC.
