Front Fog Lamp LH Connector End View (E07)

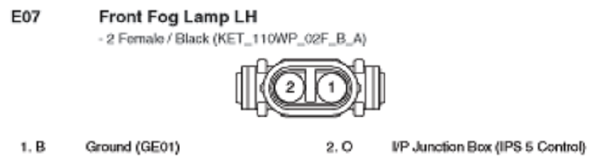

Fig 1: Front Fog Lamp LH Connector End View (E07)

G10798279

Courtesy of KIA MOTORS AMERICA, INC.
