External Buzzer Connector End View (E29)

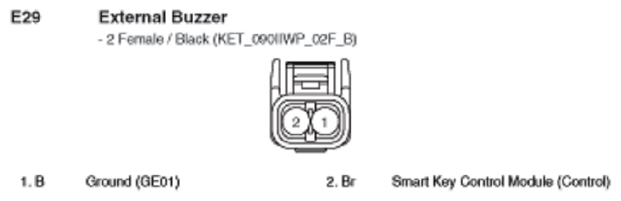

Fig 1: External Buzzer Connector End View (E29)

G10798297

Courtesy of KIA MOTORS AMERICA, INC.
