Clutch Switch Connector End View (E21)

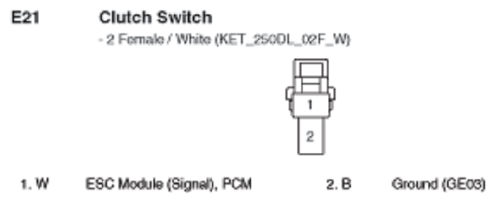

Fig 1: Clutch Switch Connector End View (E21)

G10798290

Courtesy of KIA MOTORS AMERICA, INC.
