Burglar Horn Connector End View (E20)

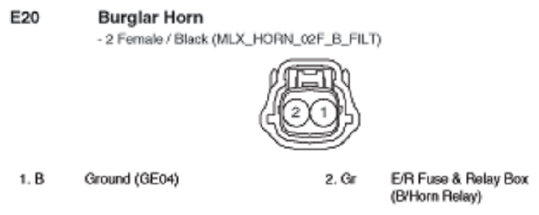

Fig 1: Burglar Horn Connector End View (E20)

G10798289

Courtesy of KIA MOTORS AMERICA, INC.
