B/A Horn Relay Connector End View (E73)

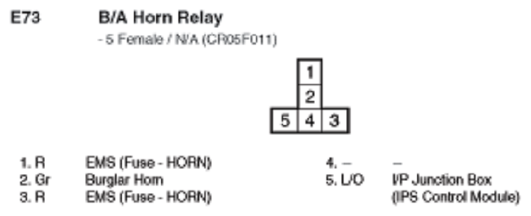

Fig 1: B/A Horn Relay Connector End View (E73)

G10798312

Courtesy of KIA MOTORS AMERICA, INC.
