Accel Pedal Position Sensor Connector End View (E17)

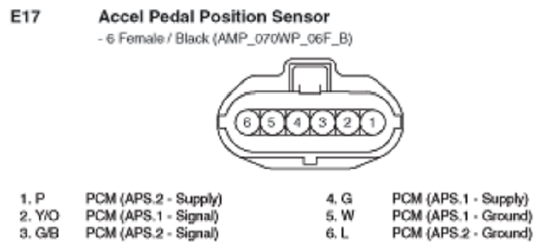

Fig 1: Accel Pedal Position Sensor Connector End View (E17)

G10798286

Courtesy of KIA MOTORS AMERICA, INC.
