Driver Reclining Motor Connector End View (S31)

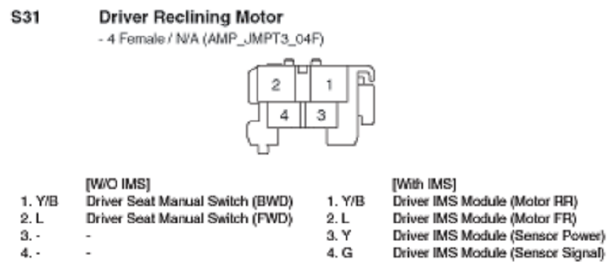

Fig 1: Driver Reclining Motor Connector End View (S31)

G10798493

Courtesy of KIA MOTORS AMERICA, INC.
