Driver IMS Switch Connector End View (D16)

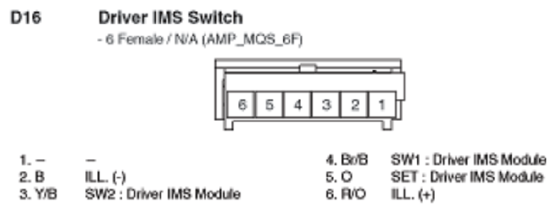

Fig 1: Driver IMS Switch Connector End View (D16)

G10798454

Courtesy of KIA MOTORS AMERICA, INC.
