Passenger Slide Motor Connector End View (S22)

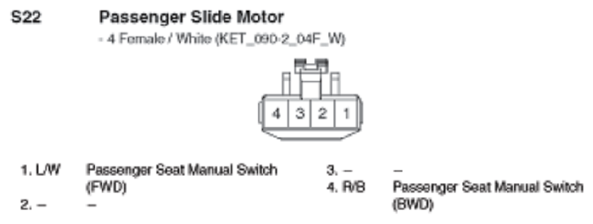

Fig 1: Passenger Slide Motor Connector End View (S22)

G10798484

Courtesy of KIA MOTORS AMERICA, INC.
