Passenger Seat Warmer Module Connector End View (S28)

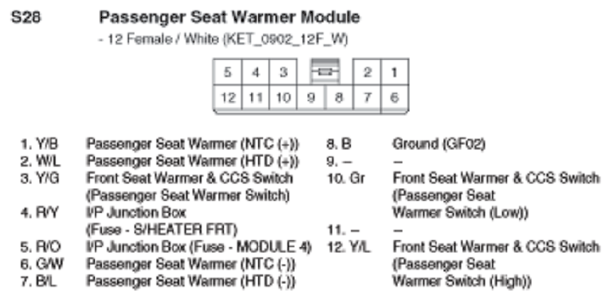

Fig 1: Passenger Seat Warmer Module Connector End View (S28)

G10798489

Courtesy of KIA MOTORS AMERICA, INC.
