Passenger Reclining Limit Switch Connector End View (S23)

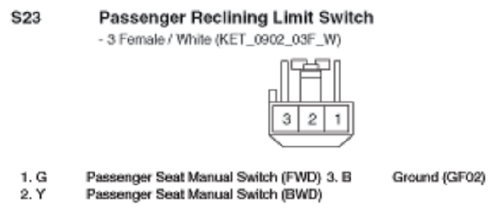

Fig 1: Passenger Reclining Limit Switch Connector End View (S23)

G10798485

Courtesy of KIA MOTORS AMERICA, INC.
