Passenger Cushion Warmer Connector End View (S29)

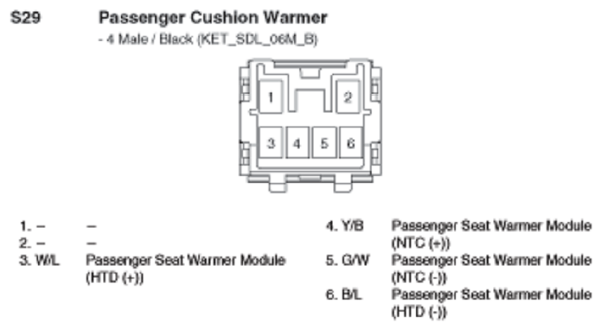

Fig 1: Passenger Cushion Warmer Connector End View (S29)

G10798490

Courtesy of KIA MOTORS AMERICA, INC.
